Rated Voltage 66～500kV XLPE Insulated Power Cable

1.Standard：These products implement the latest edition of GB/T11017,GB/T18890、GB/T22078、IEC60840 and IEC62067 standards.

2.Scope of Application：Such products are applied for 66kV-500kV high-voltage and ultra-high-voltage transmission and distribution lines, are suitable for using in humid and high groundwater places, and can withstand certain lateral pressure and mechanical force. Water-blocking power cables also have the function of longitudinal water-blocking.Ultra-high voltage cables are generally used as the central hub in large-scale power transmission systems, and are used in the main network power transmission system of urban power grids.
Message form contact us
PREV: No previous article NEXT: Instrumentation Cable

Details & specifications

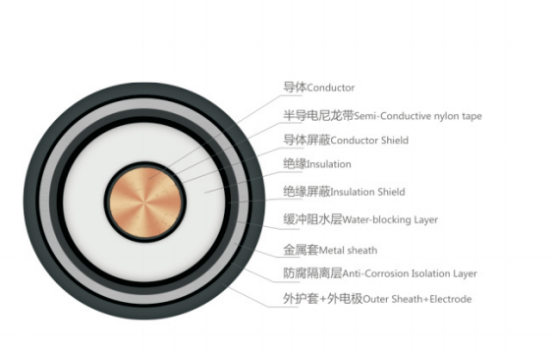

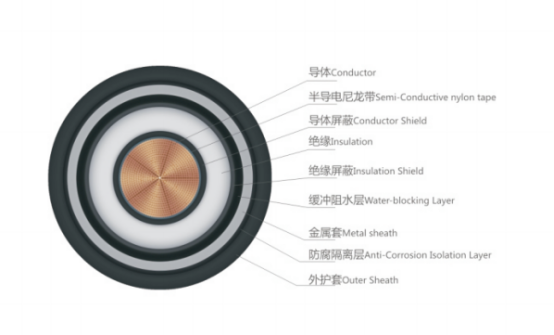

  • Construction
  • Technical Data Sheet
  • Documents to download

1.Product performance:

Max. allowable temperature of the cable conductor:90 ℃ during normal operation and 250 ℃ during short circuit (Max.5s).

Min. bending radius for cable installation is recommended to be 20 times the outer diameter of the cable.

The ambient temperature of the PVC sheathed cable shall not be lower than 0 ℃, and the cable should be pre-heated when it is lower than

0℃.

2.Cable Type Description

 Type

 Description

 CU Core

 AL Core

YJLW02

YJLLW02

 XLPE Insulated Corrugated Aluminum Sheathed PVC Sheathed Power Cable

YJLW03

YJLLW03

 XLPE Insulated Corrugated Aluminum Sheathed PE Sheathed Power Cable

YJLW02-Z

YJLLW02-Z

 XLPE Insulated Corrugated Aluminum Sheathed PVC Sheathed Longitudinal Water Blocking Power Cable

YJLWO3-Z

YJLLWO3-Z

 XLPE Insulated Corrugated Aluminum Sheathed PE Sheathed Longitudinal Water Blocking  Power  Cable

YJQ02

YJLQ02

 XLPE Insulated Lead Sheathed PVC Sheathed Power Cable

YJQ03

YJLQ03

 XLPE Insulated Lead Sheathed PE Sheathed Power Cable

YJQ02-Z

YJLQ02-Z

 XLPE Insulated Lead Sheathed PVC Sheathed Longitudinal Water Blocking Power Cable

YJQ03-Z

YJLQ03-Z

 XLPE Insulated Lead Sheathed PE Sheathed Longitudinal Water Blocking Power Cable

YJA03

YJLA03

 XLPE Insulated Metal Composite PE Sheathed Power Cable

YJAO3-Z

YJLAO3-Z

 XLPE Insulated Metal Composite PE Sheathed Longitudinal Water Blocking Power Cable

YJLP03

YJLLPO3

 XLPE Insulated Smooth Aluminum Sheathed PE Sheathed Power Cable

YJLPO3-Z

YJLLPO3-Z

 XIPE Insulated Smooth Aluminum Sheathed PE Sheathed Power(cable with Longitudinal Water Blocking Structure

YJLP02

YJLLP02

 XLPE Insulated Smooth Aluminum Sheathed PVC Sheathed Power Cable

YJLPO2-Z

YJLLP02-Z

 XLPE Insulated Smooth Aluminum Sheathed PVC Sheathed Power Cable With Longitudinal Water Blocking Structure
