Instrumentation Cable

1.Standard:Refer to the latest version of Q/ZWD 006 standard formulated by JB/T 13486.

2.Scope of application:This cable is suitable for rated voltage 300/500V and below, used for signal transmission of computing system, monitoring circuits,ACS, and connection of instrumentation connect.

Message form contact us

PREV: Rated Voltage 66～500kV XLPE Insulated Power Cable NEXT: Rubber Sheathed Flexible Cable

Details & specifications

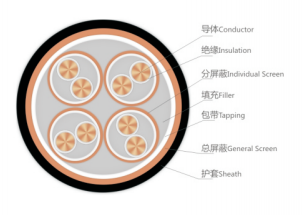

Construction
Technical Data Sheet
Documents to download

1.Product performance:

（1）Rated voltage: 300/500V,AC 50Hz.

（2） Long-term allowable maximum working temperature of cable conductor: PE insulated cable +70℃.

PVC insulated cable +70℃.

XLPE insulated cable +90℃.

（3）The cable laying temperature should not be lower than 0℃ . If the temperature is lower than 0 ℃, it must be preheated.

（4）Recommended allowable bending radius: the cable without armor should not be less than 6 times of the cable outer diameter, and the cable with armor or copper tape screen should not be less than 12 times of the cable outer diameter.

（5）The allowable ambient temperature of the cable is -25 ℃~50 ℃, and the relative humidity is not more than 80%.

2.Cable Type Description

Type	Description
DJYVP	Copper Conductor, PE Insulation, Copper Wire Braided Overall Screen, PVC Sheathed Computer And Instrument Screen Cable
DJYVP2	Copper Conductor, PE Insulation, Copper Tape (copper Plastic Tape) Overall Screen, PVC Sheathed Computer And Instrument Screen Cable
DJYVP3	Copper Conductor, PE Insulation, Aluminum-plastic Composite Tape Overall Screen, PVC Sheathed Computer And Instrument Screen Cable
DJYPV	Copper Conductor, PE Insulation, Copper Wire Braided Individual Screen, PVC Sheathed Computer And Instrument Screen Cable
DJYP2V	Copper Conductor, PE Insulation, Copper Tape (copper Plastic Tape) Individual Screen,PVC Sheathed Computer And instrument screen Cable
DJYP3V	Copper Conductor, PE Insulation, Aluminum-plastic Composite Tape Individual Screen, PVC Sheathed Computer And Instrument Screen Cable
DJYVPR	Copper Conductor, PE Insulation, Copper Wire Braided Overall Screen, PVC Sheathed Computer And Instrument Screen Flexible Cable
DJYVP2R	Copper Conductor, PE Insulation, Copper Tape (copper Plastic Tape) Overall Screen, PVC Sheathed Computer And Instrument Screen Flexible Cable
DJYVP3R	Copper Conductor, PE Insulation, Aluminum-plastic Composite Tape Overall Screen, PVC Sheathed Computer And Instrument Screen Flexible Cable
DJYPVR	Copper Conductor, PE Insulation, Copper Wire Braided Individual Screen, PVC Sheathed Computer And Instrument Screen Flexible Cable
DJYP2VR	Copper Conductor, PE Insulation, Copper Tape (copper Plastic Tape) Individual Screen, PVC sheathed Computer Ana instrument screen Flexible Cable
DJYP3VR	Copper Conductor, PE Insulation, Aluminum-plastic Composite Tape Individual Screen, PVC Sheathed computer And Instrument Screen Flexible Cable
