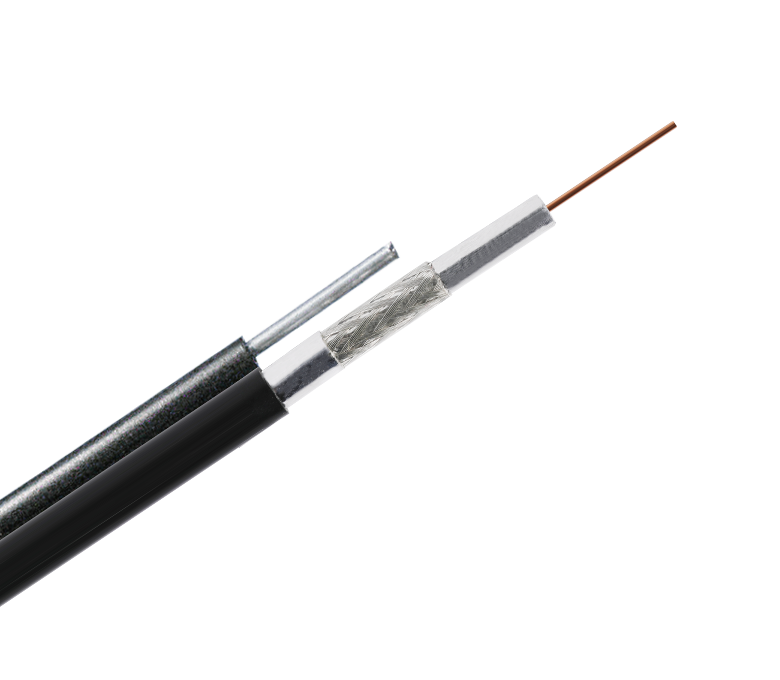

RG6TMF Series 75 Ohm Coaxial Cable—Tri-Shield with Messenger, Jelly

Coaxial Cable can be used for the transmission of both analog and digital signals. It is adopted to television broadcasting, long-distance telephone transmission, short-distance connections between computer systems, and local area networks. It has the advantages of good temperature performance, ultraviolet resistance, flame retarded, good shielding performance and long service life.
Message form contact us
PREV: No previous article NEXT: RG6TM Series 75 Ohm Coaxial Cable—Tri-Shield with Messenger

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Material

Diameter (mm)

Inner Conductor

CCS

1.02

Dielectric

Foamed PE

4.57

Al Foil

Bonded APA

4.78

Braiding

Al-Mg

5.26

Al Foil

APA

5.34

Messenger

Galvanized Steel

1.30

Jacket

PE With Jelly

7.06

Packaging

305m/Wooden reel

D330×d100×H300
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

News

Product knowledge extension

RG6TMF Series Tri-Shield Messenger Coaxial Cable is a high-quality coaxial cable designed for indoor and outdoor use in a variety of applications, including satellite, cable television, and video surveillance systems. The cable features a tri-shield design, which provides excellent protection against interference and signal loss, and a messenger wire for added support when installing the cable overhead.
Product Specifications:
Cable Type: RG6 Tri-Shield Messenger Coaxial Cable
Impedance: 75 Ohm
Conductor Material: Bare Copper Clad Steel (CCS)
Dielectric Material: Foam Polyethylene (FPE)
Shielding: Aluminum Foil, Aluminum Braid, and Aluminum Foil
Messenger Wire: Galvanized Steel
Jacket Material: Polyvinyl Chloride (PVC)
Operating Temperature Range: -40°C to +60°C
Nominal Outside Diameter: 7.0 mm
Certifications:
UL Listed
RoHS Compliant
Applications:
Satellite TV
Cable TV
Video Surveillance Systems
Other High-Frequency Applications
Packaging:
305m (1000ft) Reels
Customized Packaging Available on Request
