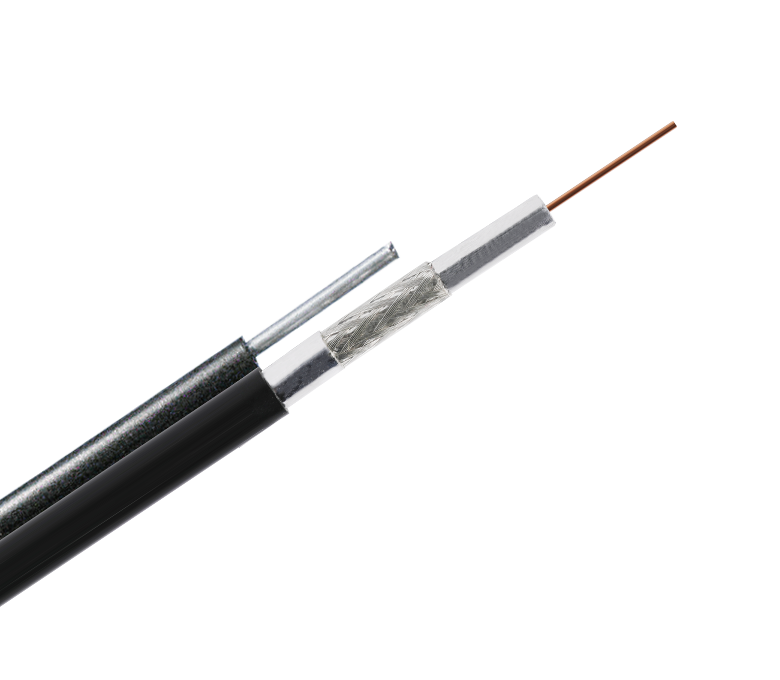

RG6TM Series 75 Ohm Coaxial Cable—Tri-Shield with Messenger

Coaxial Cable can be used for the transmission of both analog and digital signals. It is adopted to television broadcasting, long-distance telephone transmission, short-distance connections between computer systems, and local area networks. It has the advantages of good temperature performance, ultraviolet resistance, flame retarded, good shielding performance and long service life.
Message form contact us
PREV: RG6TMF Series 75 Ohm Coaxial Cable—Tri-Shield with Messenger, Jelly NEXT: RG6TF Series 75 Ohm Coaxial Cable—Tri-Shield with Jelly

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Material

Diameter (mm)

Inner Conductor

CCS

1.02

Dielectric

Foamed PE

4.57

Al Foil

Bonded APA

4.78

Braiding

Al-Mg

5.26

Al Foil

APA

5.34

Messenger

Galvanized Steel

1.30

Jacket

PVC

7.06

Packaging

305m/Wooden reel

D330×d100×H300
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

News

Product knowledge extension

The RG6TM Series Tri-Shield Coaxial Cable with Messenger is a high-quality cable designed for use in a wide range of applications. This cable features a tri-shield design that provides excellent protection against interference and signal loss. It is also equipped with a messenger wire that makes it easy to install and provides additional support.
This cable is made from high-quality materials that ensure reliable performance and long-lasting durability. It is designed to meet or exceed industry standards for performance and quality. The RG6TM Series Tri-Shield Coaxial Cable with Messenger is suitable for use in a variety of applications, including cable TV, satellite TV, and other digital video applications.
Product Specifications:
Cable Type: RG6
Impedance: 75 Ohm
Shielding: Tri-Shield
Messenger: Yes
Jacket Color: Black
Conductor Material: Copper-Clad Steel
Jacket Material: PVC
Operating Temperature: -40°C to +80°C
Nominal Capacitance: 54 pF/m
Nominal Velocity of Propagation: 85%
Nominal Attenuation (dB/100 ft.):
30 MHz: 1.5
50 MHz: 2.0
200 MHz: 4.5
400 MHz: 6.5
1000 MHz: 11.5
