Aluminum Stranded Wires, Aluminum Conductor Steel Reinforced

1 . Standard:This product is produced in accordance with the latest edition of GB/T 1179.



2. Scope of Application :This product is mainly used for overhead power transmission, which has the characteristics of long-distance, high-current,high-voltage power grid transmission lines, and adopts the laying method of overhead towers.

Message form contact us
PREV: Power Cable for Inverter NEXT: Plastic Insulated Control Cable for the Fixed Laying

Details & specifications

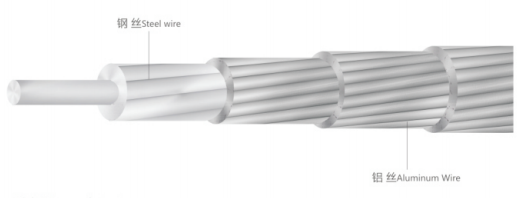

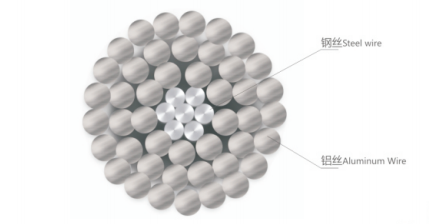

  • Construction
  • Technical Data Sheet
  • Documents to download

1.Product Performance

(1)The long-term operating temperature of the overhead wire is 70 ℃.

(2)Under conditions of rare weather with large spans and less icing in heavy ice areas, the maximum stress of the wire at the lowest point of sag should not exceed 60% of the instantaneous failure stress.

(3)The diameter of the groove bottom of the pay-off pulley should be 10 times outer diameter of the wire, and the material of the pulley should be adapted to the wire material to avoid damage to the wire.

(4)When connecting the wires, the strands near the connecting pipe should not be bulged. Otherwise, the strands of the wires will be unevenly stressed during operation.The connecting pipes should be coated with moisture-proof paint to prevent corrosion after connector completed.

(5)During installation, the sag stress of all wires of the same type in the cabinet shall be equal. Within the allowable range of distance to the ground and across the building protection, the conductor stress can be 10-15% higher of the normal tension.







2.型号名称/ Cable Type Description

Type

Description

JL/UJ

Aluminum Stranded Wire

JLHA1、JLHA2、JLHA3、JLHA4

Aluminum Alloy Stranded Wire

JL/G1A、JL/G2A、JL/G3AJ、L1/G1A、JL1/G2A、JL1/G3A、JL2/G1A、JL2/G2A、JL2/G3A、JL3/G1A、JL3/G2A、JL3/G3A

Aluminum Conductor Steel Reinforced

JL/G1AF、JL/G2AF、JL/G3AF、JL1/G1AF、JL1/G2AF、JL1/G3AF、JL2/G1AF、JL2/G2AF、JL2/G3AF、JL3/G1AF、JL3/G2AF、JL3/G3AF

Anti-Corrosive Aluminum Conductor Steel Reinforced

JLHA1/G1A、JLHA1/G2A、JLHA1/G3A、JLHA2/G1A、JLHA2/G2A、JLHA2/G3A、JLHA3/G1A、JLHA3/G2A、JLHA3/G3A、JLHA4/G1A、JLHA4/G2A、JLHA4/G3A

Steel Core Aluminum Alloy Stranded Wire

JLHA1、G1AJLHA1/G2AF、JLHA1/G3AF、JLHA2/G1A、JLHA2/G2AF、JLHA2/G3AF、JLHA3/G1AF、JLHA3/G2AF、JLHA3/G3AF、JLHA4/G1AF、JLHA4/G2AF、ILHA4/G3AF

Anti-Corrosive Aluminum Alloy Conductor Steel Reinforced

JL/LHA1、JL1/LHA1、JL2/LHA1、JL3/LHA1、JL/LHA2、JL1/LHA2、JL2/LHA2、JL3/LHA2

Aluminum Conductor Aluminum Alloy Reinforced

JL/LB14、JL1/LB14、JL2/LB14、JL3/LB14

JL/LB20A、JL1/LB20A、JL2/LB20A、JL3/LB20A

Aluminum Clad Steel Core Aluminum Stranded Wire

JLHA1/LB14、JLHA2/LB14

JLHA1/LB20A、JLHA2/LB20A

Aluminum Clad Steel Core Aluminum Alloy Stranded Wire

JLHA1/LB14F、JLHA2/LB14F

JLHA1/LB2OAF、JLHA2/LB2OAF

Anti-Corrosive Aluminum Clad Steel Core Aluminum Alloy Stranded Wire

JG1A、JG2A、JG3A、JG4A、JG5A

Steel Stranded Wire

JLB14、JLB20A、JLB27、JLB35、JLB40

Aluminum Clad Steel Stranded Wire
