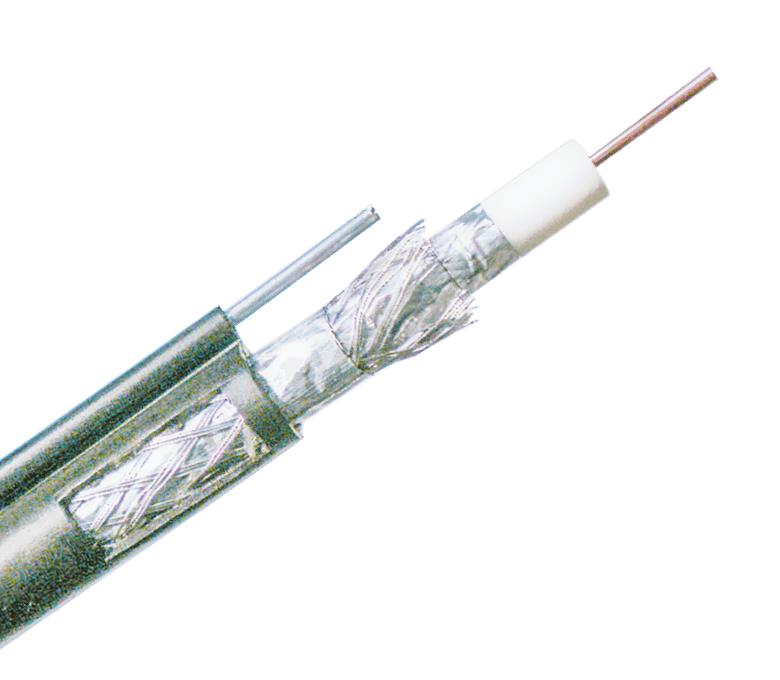

RG6QMF Series 75 Ohm Coaxial Cable—Quad-Shield with Messenger, Jelly

Coaxial Cable can be used for the transmission of both analog and digital signals. It is adopted to television broadcasting, long-distance telephone transmission, short-distance connections between computer systems, and local area networks. It has the advantages of good temperature performance, ultraviolet resistance, flame retarded, good shielding performance and long service life.
Message form contact us
PREV: No previous article NEXT: RG6QM Series 75 Ohm Coaxial Cable—Quad-Shield with Messenger

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Material

Diameter (mm)

Inner Conductor

CCS

1.02

Dielectric

Foamed PE

4.57

Al Foil

Bonded APA

4.78

Braiding

Al-Mg

5.26

Al Foil

APA

5.34

Braiding

Al-Mg

5.82

Jacket

PE With Jelly

7.54

Packaging

305m/Wooden reel

D350×d100×H300
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

News

Product knowledge extension

The RG6QMF Series 75 Ohm Coaxial Cable is a high-quality transmission cable designed for use in various applications such as cable television, satellite television, and broadband internet. This cable features a quad-shielded design with a messenger for added strength and durability. The quad-shielding provides superior protection against interference and signal loss, making this cable ideal for long cable runs and harsh environments. The messenger is made of steel for added strength and ensures the cable stays securely in place when installed.
Product Specifications:
Impedance: 75 Ohm
Cable Type: Quad-Shield with Messenger
Conductor Material: Bare Copper
Dielectric Material: Foam Polyethylene
Shielding Material: Aluminum Foil and Braiding
Jacket Material: PVC
Messenger Material: Steel
Operating Temperature: -40°C to +75°C
Nominal Capacitance: 54pF/m
Nominal Velocity of Propagation: 85%
Nominal Attenuation:
5.9dB/100ft at 50 MHz
10.5dB/100ft at 400 MHz
16.1dB/100ft at 1000 MHz
Applications:
Cable television (CATV)
Satellite television (SATV)
Broadband internet
Other applications requiring high-quality signal transmission
