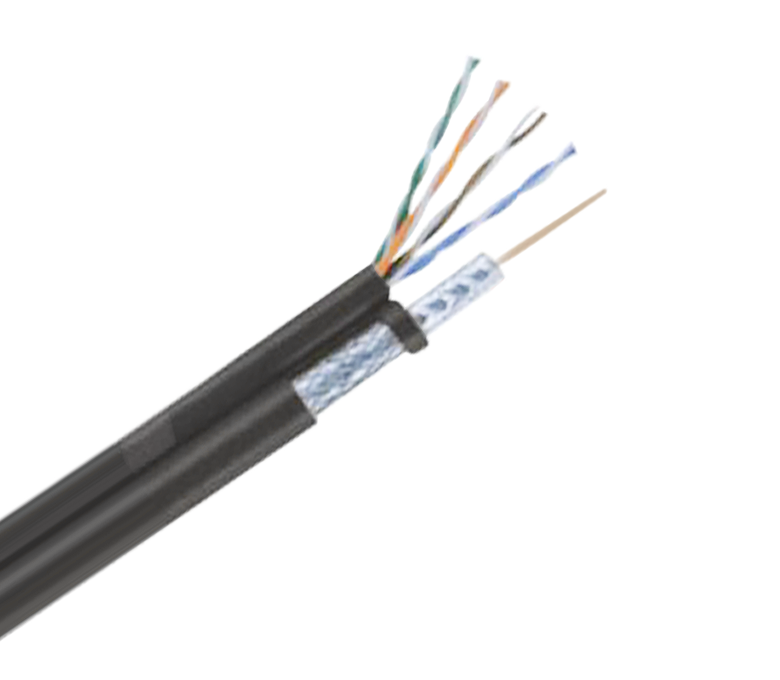

RG59+4×2×0.5CU Standard Shied 75 Ohm Braiding Cable

Message form contact us
PREV: RG59 Series 75 Ohm Standard Shied Coaxial Cable—Single Tape & Braid NEXT: RG59 Series 75 Ohm Standard Shield Coaxial Cable—Single Tape & Braid with Jelly

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Material

Diameter (mm)

Inner Conductor

CCS

0.81

Dielectric

Foamed PE

3.68

Al Foil

Bonded APA

3.88

Overall Braid

Al-Mg

Inner Conductor

CU

4*2*0.5

Dielectric

HDPE

4*2*0.9

Jacket

PVC

6.05
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

News

Product knowledge extension

The cable you mentioned, RG59+4x2x0.5cu standard shielded 75 Ohm braiding cable, appears to be a variation of the RG59 coaxial cable with additional conductors. The RG59 portion of the cable denotes that it has a characteristic impedance of 75 Ohms, making it suitable for video signal transmission. The central conductor, insulating dielectric layer, and shielding configuration are designed to maintain signal integrity and minimize interference. This type of cable is commonly used in applications that require both video signal transmission and the simultaneous transmission of power or control signals. It is often utilized in CCTV (Closed-Circuit Television) systems, security systems, and other similar installations.
