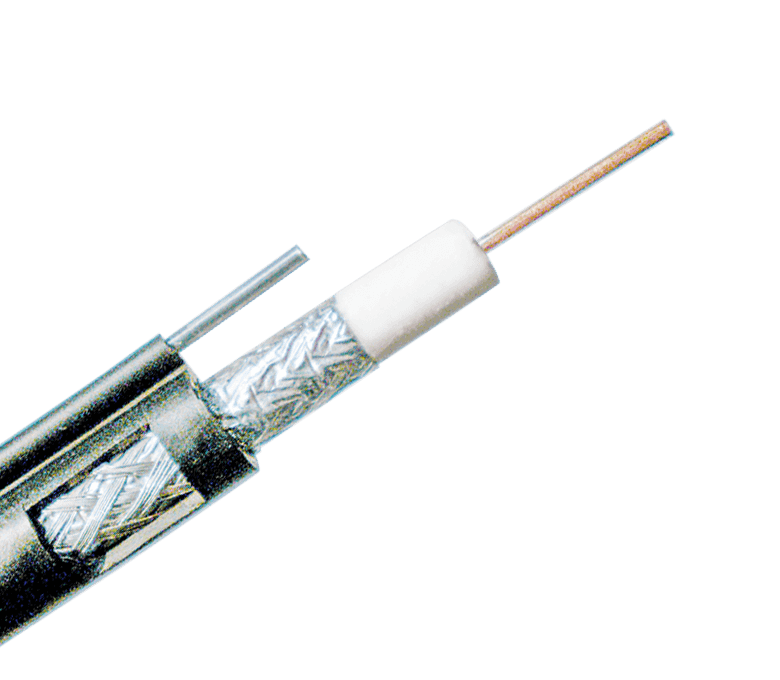

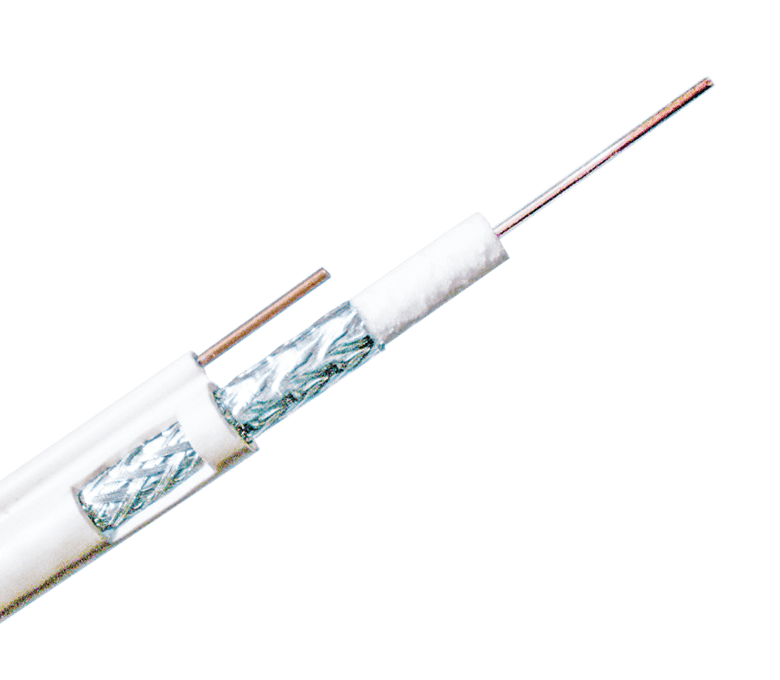

RG59QM Series 75 Ohm Coaxial Cable—Quad-Shield with Messenger

Coaxial Cable can be used for the transmission of both analog and digital signals. It is adopted to television broadcasting, long-distance telephone transmission, short-distance connections between computer systems, and local area networks. It has the advantages of good temperature performance, ultraviolet resistance, flame retarded, good shielding performance and long service life.
Message form contact us
PREV: No previous article NEXT: RG59QF Series 75 Ohm Coaxial Cable—Quad-Shield with Jelly

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Material

Diameter (mm)

Inner Conductor

CCS

0.81

Dielectric

Foamed PE

3.66

Al Foil

Bonded APA

3.86

Braiding

Al-Mg



Messenger

Galvanized Steel

1.30

Jacket

PVC

6.10

Packaging

305m/Wooden reel

D330×d100×H300
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

News

Product knowledge extension

RG59 Quad-Shield Series 75 Ohm Braiding Coaxial Cable is a high-performance cable that provides reliable signal transmission for various applications. It features four layers of shielding to minimize interference, making it suitable for use in areas with high levels of electromagnetic interference (EMI). The 75 Ohm impedance of this cable makes it ideal for use in video and audio signal applications, such as CCTV systems, satellite TV, and broadband internet. The braided construction of the cable provides flexibility and durability, while the PVC jacket ensures long-lasting protection against external factors such as moisture and sunlight. The cable is easy to install and is available in various lengths to suit your specific needs. Whether you're setting up a new audio-visual system or upgrading an existing one, the RG59 Quad-Shield Series 75 Ohm Braiding Coaxial Cable is an excellent choice for reliable signal transmission.
