Home / Product / Coaxial Cable / 75 Ohm Braiding Coaxial Cable / RG11 Standard Shied Coaxial Cable / RG11MF Series 75 Ohm Standard Coaxial Cable—Single Tape & Braid with Messenger

RG11MF Series 75 Ohm Standard Coaxial Cable—Single Tape & Braid with Messenger Wholesale

Home / Product / Coaxial Cable / 75 Ohm Braiding Coaxial Cable / RG11 Standard Shied Coaxial Cable / RG11MF Series 75 Ohm Standard Coaxial Cable—Single Tape & Braid with Messenger

RG11MF Series 75 Ohm Standard Coaxial Cable—Single Tape & Braid with Messenger

Coaxial Cable can be used for the transmission of both analog and digital signals. It is adopted to television broadcasting, long-distance telephone transmission, short-distance connections between computer systems, and local area networks. It has the advantages of good temperature performance, ultraviolet resistance, flame retarded, good shielding performance and long service life.
Message form contact us
PREV: RG11 Series 75 Ohm Standard Coaxial Cable—Single Tape & Braid NEXT: RG11M Series 75 Ohm Standard Coaxial Cable—Single Tape & Braid with Messenger

Details & specifications

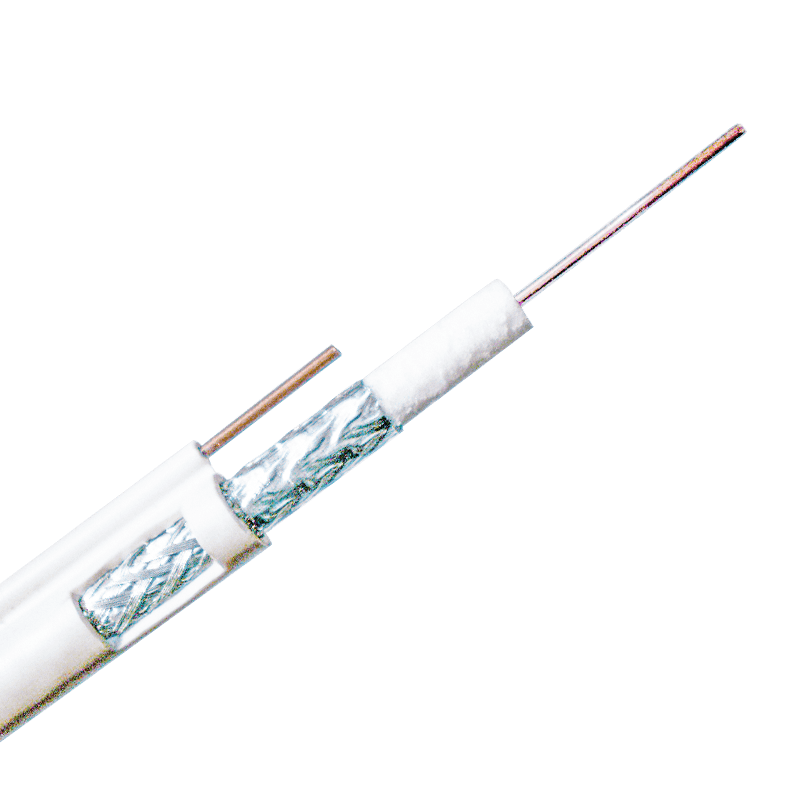

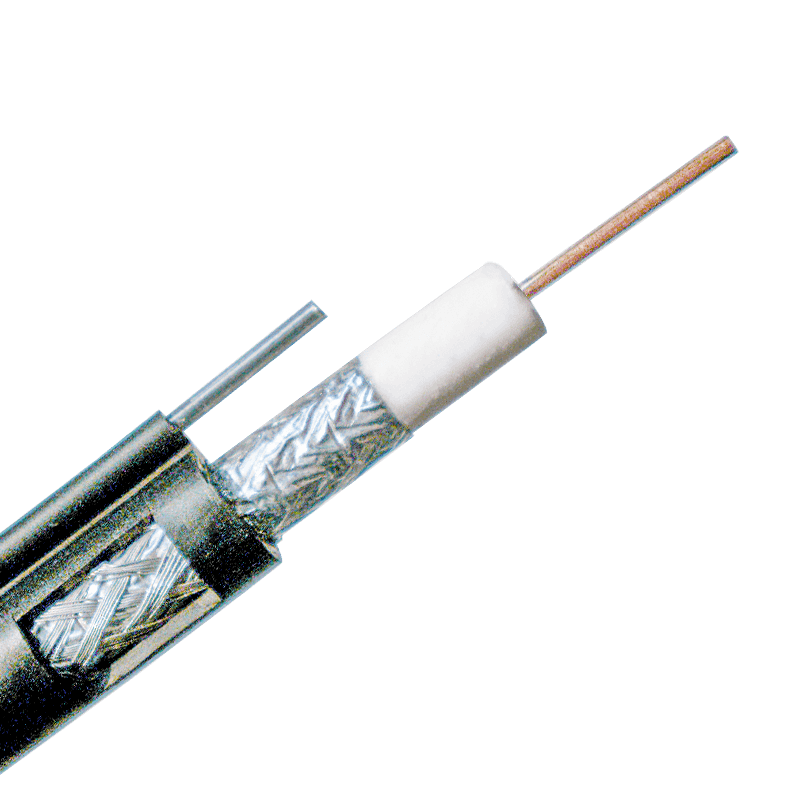

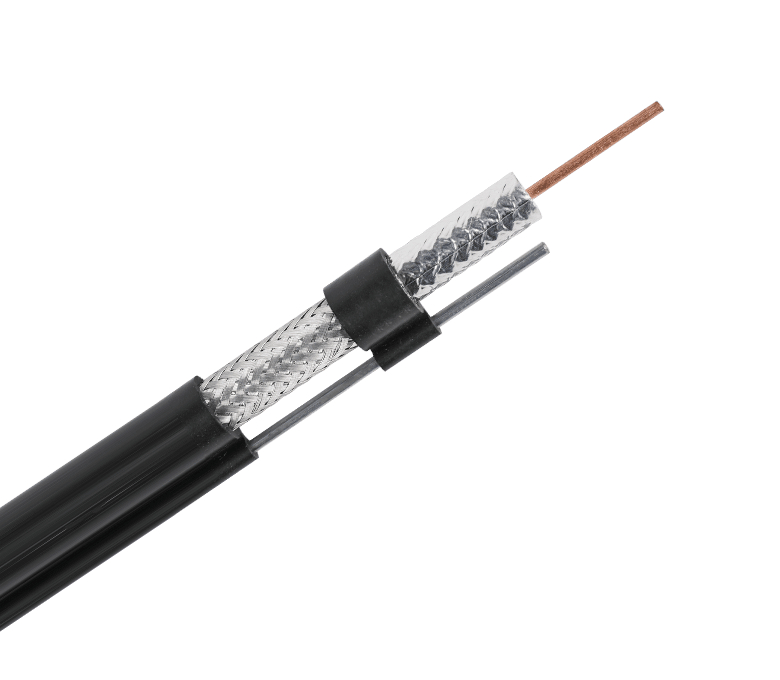

  • Construction
  • Technical Data Sheet
  • Documents to download

Material

Diameter (mm)

Inner Conductor

CCS

1.63

Dielectric

Foamed PE

7.11

Al Foil

Bonded APA

7.32

Braiding

Al-Mg



Messenger

Galvanized Steel

1.83

Jacket

PVC

10.16

Packaging

305m/Wooden reel

D455×d135×H325
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

News

Product knowledge extension

This cable has been designed to provide unmatched performance, durability, and reliability, making it ideal for use in a wide range of applications.

The RG11MF Series 75 Ohm Standard Coaxial Cable features a unique construction that sets it apart from other cables on the market. It is a single tape and braid cable, which means it has a strong and durable messenger wire. This wire is made of high-quality materials that ensure it can withstand even the toughest weather conditions, making it ideal for outdoor use.

The cable has a 75 Ohm impedance, which is the standard impedance for coaxial cables used in most applications. This impedance provides excellent signal quality and ensures that there is minimal signal loss, even over long distances. With the RG11MF Series 75 Ohm Standard Coaxial Cable, you can be sure that your signals will always be clear and crisp, without any interference or distortion.

One of the most notable features of the RG11MF Series 75 Ohm Standard Coaxial Cable is its superior shielding. The cable is designed with both a foil tape and a braid shield, which work together to provide maximum protection against electromagnetic interference (EMI) and radio frequency interference (RFI). This shielding ensures that your signals remain clean and strong, even in areas with high levels of interference.

The RG11MF Series 75 Ohm Standard Coaxial Cable is also highly durable. It is made from high-quality materials that are designed to withstand harsh environments and extreme temperatures. The cable is UV resistant, which means it can be used outdoors without any degradation in performance. Additionally, it is flame retardant, which makes it ideal for use in buildings where fire safety is a concern.

Installation of the RG11MF Series 75 Ohm Standard Coaxial Cable is also a breeze. The cable comes with pre-attached connectors, which means you can easily plug it in and start using it right away. The connectors are also corrosion-resistant, which ensures that they will last for a long time without any degradation in performance.

The RG11MF Series 75 Ohm Standard Coaxial Cable is suitable for use in a wide range of applications. It can be used for cable TV, satellite TV, and high-speed internet connections. It is also ideal for use in security systems, CCTV cameras, and other applications that require high-quality signal transmission.
