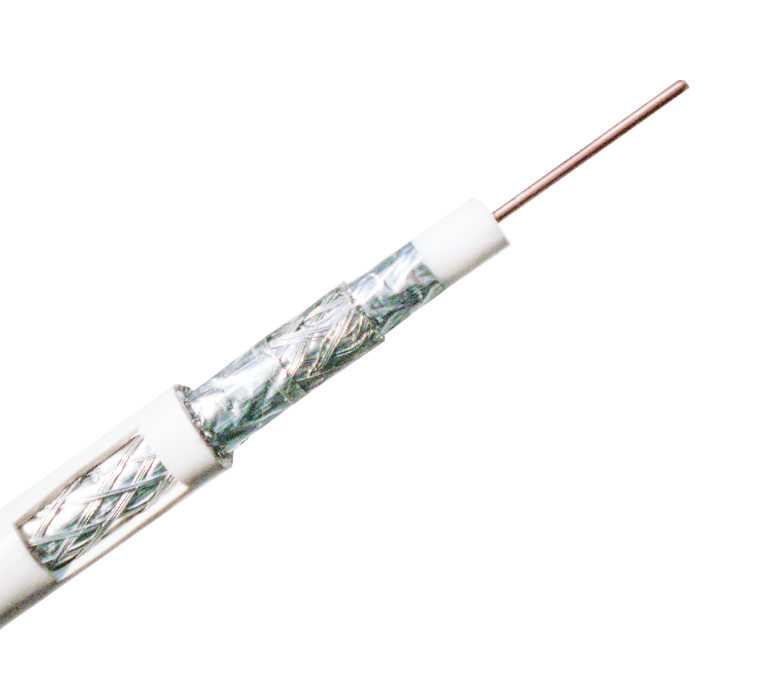

RG11QF Series 75 Ohm Coaxial Cable—Quad-Shield with Jelly

Coaxial Cable can be used for the transmission of both analog and digital signals. It is adopted to television broadcasting, long-distance telephone transmission, short-distance connections between computer systems, and local area networks. It has the advantages of good temperature performance, ultraviolet resistance, flame retarded, good shielding performance and long service life.
Message form contact us
PREV: RG11QM Series 75 Ohm Coaxial Cable—Quad-Shield with Messenger NEXT: RG11Q Series 75 Ohm Braiding Coaxial Cable—Quad-Shield

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Material

Diameter (mm)

Inner Conductor

CCS

1.63

Dielectric

Foamed PE

7.11

Al Foil

Bonded APA

7.32

Braiding

Al-Mg

 7.80

Al Foil

APA

7.88

Braiding

Al-Mg

8.36

Jacket

PE With Jelly

10.34

Packaging

305m/Wooden reel

D400×d135×H325
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

News

Product knowledge extension

Our RG11QF series coaxial cable is a high-quality solution for a variety of applications requiring reliable signal transmission. With quad-shielded construction and jelly filling, this cable provides excellent protection against electromagnetic interference and moisture. The RG11QF series is specifically designed for use in high-frequency digital and analog video, cable TV, and satellite installations.
Product Specifications:
Impedance: 75 Ohm
Conductor Material: Solid Bare Copper
Dielectric Material: Foam Polyethylene
Shielding: Quad-Shield (Aluminum Foil/Braid/Aluminum Foil/Braid)
Jacket Material: PVC
Jelly Filling: Yes
Nominal Attenuation: 0.47 dB/100 ft @ 1 GHz
Operating Temperature: -40°C to +75°C
RoHS compliant
Applications:
High-frequency digital and analog video
Cable TV and satellite installations
Standards:
UL Listed CMP
Complies with RoHS and REACH directives
