GJJU Indoor Optical Fiber Cable

Construction

Description

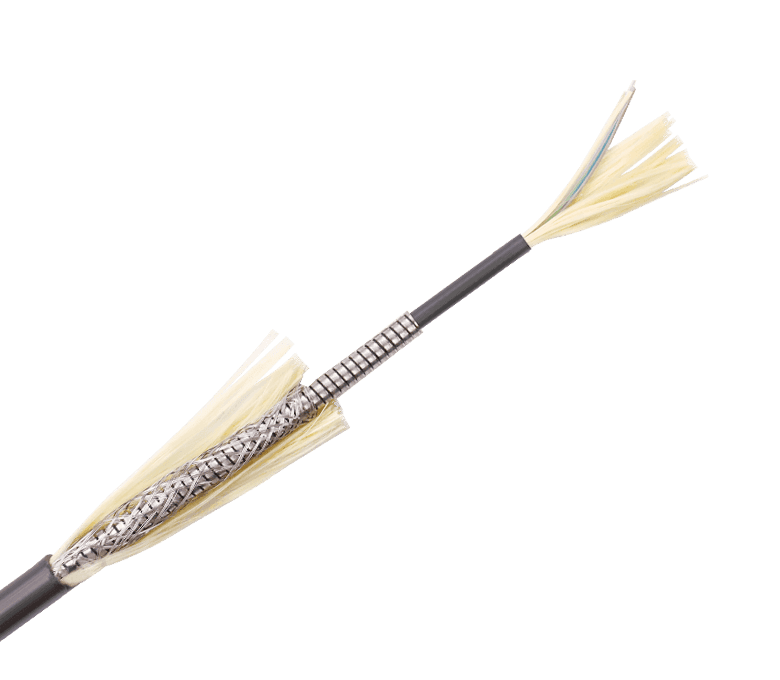

Compact optical fiber set, reinforced parts, inner sheath, spiral armor, metal weaving, outer sheath

Optical fiber

Single mode fiber ：G.652D、G.657A1、G.657A2 ect， Multimode (optical) fibre ：OM1、OM2、OM3、OM4、OM5

Tight cover layer

Ф0.6mm

Strength-Member

yarn, etc

Spira armor

SUS304

Stainless steel weaving

SUS304

Jacket

Material： polyurethane （TPU）Or other materials

Character

Application

It is mainly used to lead down on wind power towers

Characteristic

Torsional resistance, to meet the long-term torsion state for use;

High flame retardant, safe to use;

UV resistance, wear resistance, pressure resistance, high tensile resistance, excellent mechanical and environmental performance;

Operating-Temperature

-40℃～+70℃

Parameters

Fiber Count

Diameter（mm）

Weight（kg）

Tensile Strength

（N）

Crush Resistance Strength（N/10cm）

Bending Radius

（mm）

Long Term

Short Term

Long Term

Short Term

Static

Dynamic

1

7.0

82

1000

2000

1000

3000

10D

20D
