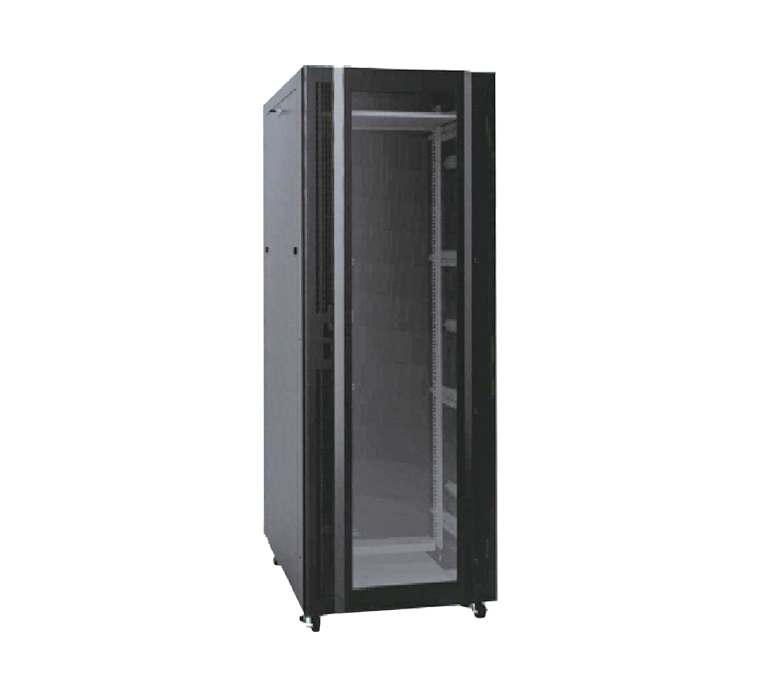

Color Printing Packaging Line, Imported New High-end Printing Equipment
The material is high-quality SPCC cold-rolled steel plate, the thickness of the angle gauge is 2.0 mm, the thickness of the frame is 1.5 mm, and the thickness of other main components is 1.2 mm; static load: ≥1000KG, protection level: IP20;
The front door is a single-open mesh door, and the rear door is a single-open mesh door. The ventilation rate: 80%, the opening and closing angle is greater than 135 degrees; the mesh front door or the tempered glass front door can be selected;
The two side panels are detachable, equipped with comfortable plastic handles, and various wiring channels are reserved; elastic locks for the front and rear doors, and the depth of the angle gauge can be adjusted back and forth;
The fan unit is installed from the top, which is easy to disassemble and maintain during use; the cabinet reserves ground mounting holes and grounding poles to meet the needs of on-site use;
The surface of the cabinet and 19-inch angle gauge is degreasing, phosphating, and electrostatic spraying treatment, using powder spraying technology, beautiful and generous;
Applicable environment: Conductor working temperature: -20°C～70°C;
