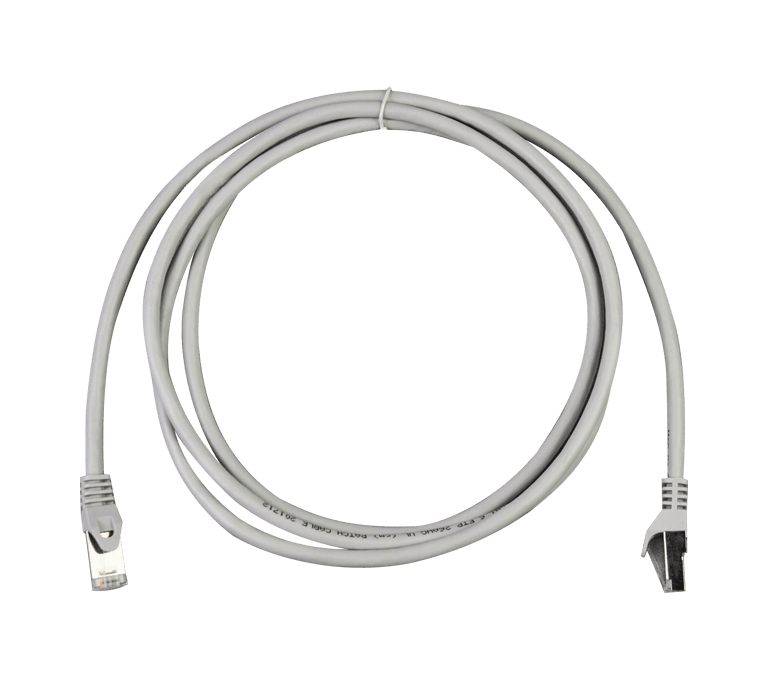

Six Types Of Shielded/unshielded Data Jumpers Copper Cabling Series Power Distribution Accessory

YD/T 926.3, ISO/IEC 11801: 2008, ANSI/EIA/TIA-568-C.2;
Message form contact us
PREV: Category 5 Shielded/unshielded Data Jumper Copper Cabling Series Power Distribution Accessory NEXT: Metal Cable Organizer Copper Cabling Series Power Distribution Accessory

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download
Multi-strand soft copper (oxygen-free copper, purity 99.99%) stranded wire, 100% of the mechanical and physical parameters pass the channel test, and professional testing equipment (FLUKE) is used to perform 100% inspection on the finished jumper, eliminating the network caused by the jumper problem;

The jumper has an injection-molded tail sleeve to prevent loosening and ensure the reliability and link stability of the cable and plug. The 50μ gold-plated RJ45 plug is used to ensure reliable contact between the gold-plated reed and the conductor; the number of insertions and removals is ≥1000;

Color and length: In order to facilitate the management and maintenance of each functional area, and quickly distinguish different network segments such as internal and external networks and private networks, a variety of color jumpers can be provided; different lengths can be provided;

Jumper structure: Sheath material: PVC/LSZH, sheath outer diameter: 6.8±0.2mm, plug: RJ45, 8P8C, plug sheath: PVC, plastic shell: transparent polycarbonate, reed material: phosphor bronze, surface 50μ gold plating;

Support data, voice, surveillance, video and other system transmission;

Support transmission bandwidth 250MHz, support transmission rate 1000Mbps;

Applicable environment: Operating temperature: -20°C～70°C. Storage temperature: -20°C～70°C. Relative humidity: 10%～90%;
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

News

Product knowledge extension

Our Six Types Of Shielded/unshielded Data Jumpers are designed to provide high-speed and reliable data transmission for your network. These jumpers are made with high-quality copper cabling and come in both shielded and unshielded versions to meet your specific networking needs. The jumpers are easy to install and are ideal for connecting switches, routers, servers, and other network devices.
Product Specifications:
Product Name: Six Types Of Shielded/unshielded Data Jumpers Copper Cabling Series Power Distribution Accessory
Product Parameters: YD/T 926.3, ISO/IEC 11801: 2008, ANSI/EIA/TIA-568-C.2
Cable Type: Category 5e
Available Versions: Shielded and Unshielded
Number of Conductors: 4 Pairs
Cable Length: Available in various lengths
Connector Type: RJ45
Compatibility: Compatible with all Category 5e compliant devices
Jacket Material: PVC
Color: Various colors available
Operating Temperature: -20°C to +75°C
Certification: RoHS compliant
