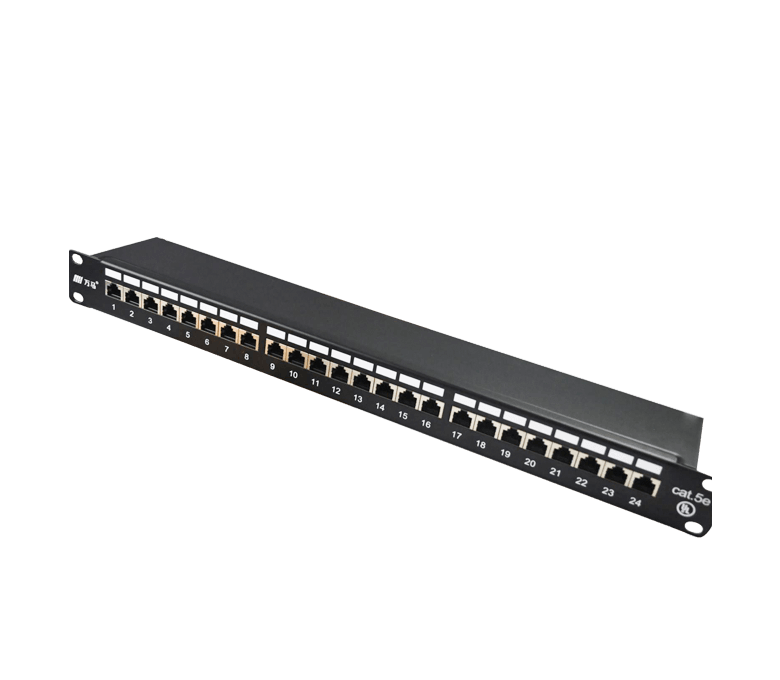

Integral Shielded Patch Panel Copper Cabling Series Power Distribution Accessory

YD/T 926.3, ISO/IEC 11801: 2008, ANSI/EIA/TIA-568-C.2.
Message form contact us
PREV: Integral Unshielded Patch Panel Copper Cabling Series Power Distribution Accessory NEXT: Super Five Shielding Information Module Copper Cabling Series Power Distribution Accessory

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download
Standard 19" rack installation.

Fully steel plate shell, frame with shielded grounding terminal and grounding wire, integrated cable management reel structure, provide reasonable cable routing management, relieve cable tension, make the system more stable and more beautiful;

The shielding layer adopts zinc alloy integral die-casting to realize 360° all-round shielding to prevent electromagnetic interference. It is suitable for high-speed local area networks with high confidentiality and harsh electromagnetic environment, and provides a safe and stable communication network;

RJ45 port, lead-free printed circuit board, anti-oxidation, protect the internal IDC from electric shock and work normally in harsh environments;

The gold needle adopts 50μ gold-plated phosphor bronze to prevent surface oxidation, provide contact performance, and ensure performance and service life;

The back 100-type wire-bonding structure makes construction more convenient and faster. The back cable bracket controls the cable bending radius, provides a reasonable routing direction, and ensures the vertical inlet direction, making the system after construction more stable and more beautiful ；

The universal line sequence label supports 568A/568B wiring, and is equipped with white reserved labels and 24-bit digital labels to facilitate port identification and management;

The module body is made of high-strength PC material, the flame retardant grade is in accordance with UL94V-0, and the overall structure of the steel base plate ensures higher mechanical strength of the product;

Category 6 supports a transmission bandwidth of 500MHz and a transmission rate of 10Gbps; Category 6 supports a transmission bandwidth of 250MHz and a transmission rate of 1000Mbps; Category 5 supports a transmission bandwidth of 100MHz and a transmission rate of 100Mbps;

Applicable environment: Operating temperature: -20°C～70°C. Storage temperature: -20°C～70°C. Relative humidity: 10%～90%;
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

News

Product knowledge extension

The patch panel is typically installed in a data center or a telecommunication room where multiple copper cables terminate. It functions as a central distribution point, allowing for easy identification, testing, and troubleshooting of the individual cables. The integral shielding ensures that the cables are protected from electromagnetic interference (EMI) and radio frequency interference (RFI), which can significantly impact the performance and reliability of the network. The integral shielded patch panel is constructed with high-quality materials, including a steel frame and copper conductors. The shielded design of the patch panel includes grounding cables to ensure that all of the cables are properly grounded, providing maximum protection against electrical noise and interference. The patch panel also features individual labeling for each port, enabling quick and easy identification of the specific cable connection.
