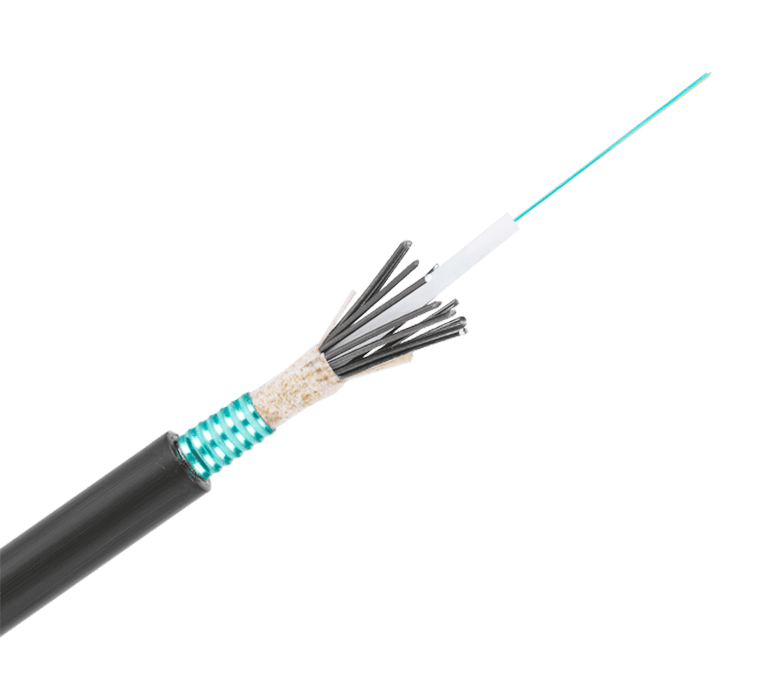

GYXTS Central Tube Type Outdoor Optical Fiber Cable

Outdoor cable applied to different environment condition, with the laying methods of dust, aerial, direct buried and underwater. Adopter to corn network, metropolitan area network, access network, ect.
Message form contact us
PREV: GYXTY Central Tube Type Outdoor Optical Fiber Cable NEXT: No next article

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Items

Specifications

 Fiber Count

4-12

Fiber Type

G.652D

Colored Coating Fiber

 Dimension

250μm±15μm

 Color

Blue、Orange、Green、Brown、Gray、White 、

Red、Black、Yellow、Purple、Pink、Aqua

Loose Tube

 Dimension

1.8mm±0.1mm（4-8F）/2.0mm±0.1mm（12F）

 Material

PBT

 Color

Natural

Strength Member

 Diameter

1.0mm

 Material

Steel wire+PE

Outer Jacket

 Dimension

8.3mm±0.3mm（4-8F）

8.5mm±0.3mm（12F）

 Material

PE

 Color

Black

Fiber Attenuation coefficient in Cable

dB/km(1310nm)

≤0.36dB/km

dB/km(1550nm)

≤0.22dB/km
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

News

Product knowledge extension

The GYXTS Central Tube Type Outdoor Optical Fiber Cable is the latest addition to our product lineup, designed to provide high-speed and reliable internet connectivity in even the most challenging outdoor environments. With a sturdy and weather-resistant construction, this fiber optic cable is ideal for use in areas with harsh weather conditions, making it an excellent choice for use in industrial settings, outdoor events, and other challenging environments.

At the heart of this cable is a central tube that houses the fiber optic strands, providing excellent protection against damage and ensuring reliable connectivity even in the harshest of conditions. This design also makes the cable easy to install, with the central tube acting as a guide for the fiber optic strands. The cable is available in a range of lengths, making it suitable for a variety of applications.

The GYXTS Central Tube Type Outdoor Optical Fiber Cable is designed to meet the highest industry standards, with a durable construction that is resistant to abrasion, moisture, and other environmental factors. The cable is capable of operating at high speeds, making it an ideal choice for use in high-bandwidth applications such as video streaming, online gaming, and cloud computing.

One of the key features of this cable is its low attenuation rate, which means that it is capable of transmitting data over long distances without significant loss of signal strength. This makes it an excellent choice for use in large-scale networks, where reliable connectivity over long distances is essential.

The GYXTS Central Tube Type Outdoor Optical Fiber Cable is easy to install and maintain, with a simple design that requires minimal maintenance. The cable is resistant to bending, which means that it can be installed in tight spaces without compromising signal strength. It is also lightweight and flexible, making it easy to handle and transport.
The cable is available in a range of colors, making it easy to identify and trace in large-scale networks. It is also available in a variety of lengths, from a few meters to several kilometers, making it suitable for use in a wide range of applications.
