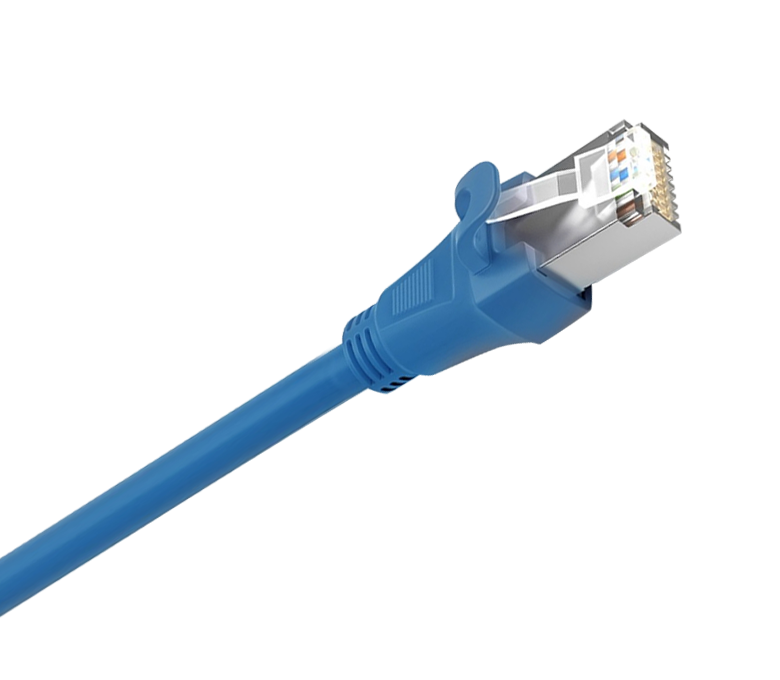

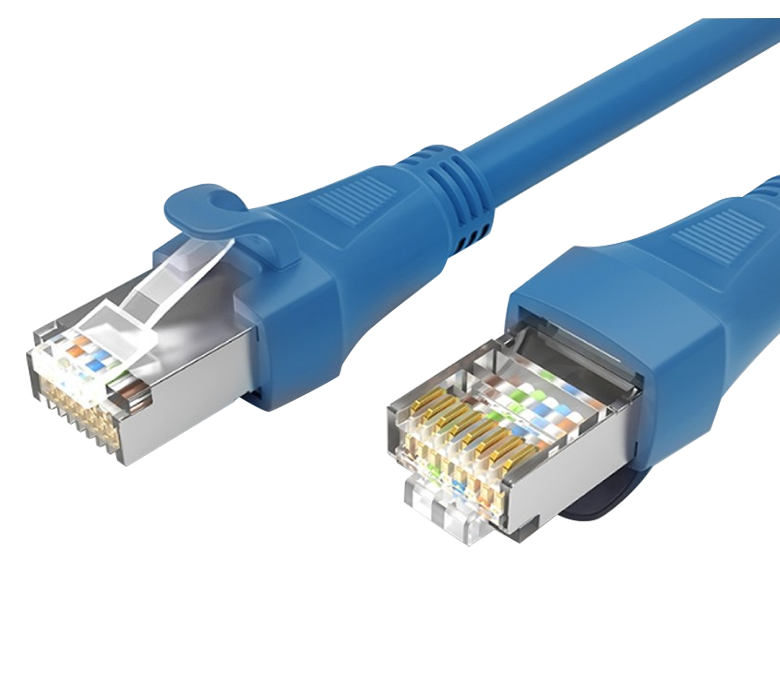

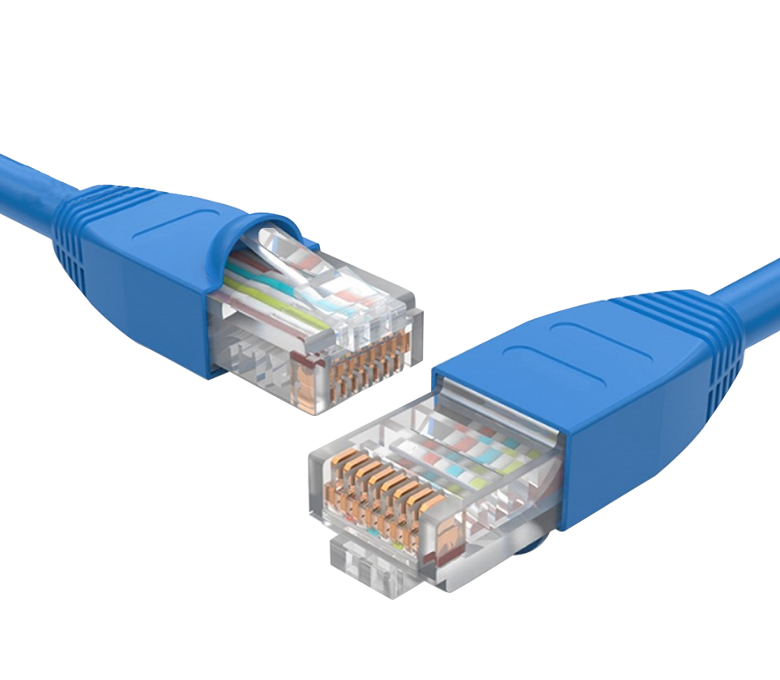

CAT6-PATCH-CORD Category Jumper Connection Cable

  • Mukti-stand soft copper(oxugen-free copper,qurity
99.99%)stranded wire.
  • Press the channel test(FLUKE).
  • The 50µ gold-plated RJ45 plug,insert&draw frequency is ≥1000 times.
  • Support bandwidth 250MHz,velocity 1000Mbps.
  • Applicable environment:use&storage temperature:-20℃~70℃,relative humidity:10% to 90%.

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Physical performance

Jacket Material

PVC/LSZH

Insulation Materials

HDPE

Conduct Material

Multi stranded oxygen fre copper

Plug Material

PC

Plug Jacket

PVC

Reed Material

50µ gold-plated phospher bronze

Insert and Frequercy

≥1000 times

Bending Radius

≥2D Diameter

Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

lEAVE A MESSAGE

News

Product knowledge extension

A CAT6 patch cord, also known as a Category 6 patch cable, is a type of Ethernet cable that is used to connect networking devices such as computers, switches, routers, and servers to each other or to a network. The CAT6 standard is an improvement over its predecessor, CAT5, and offers faster speeds and better performance.A patch cord is a short length of cable that has connectors on both ends. It is used to connect devices or components that are located close to each other. Patch cords are commonly used in data centers, server rooms, and other IT environments where devices need to be connected quickly and easily.The CAT6 patch cord is designed to meet the performance requirements of the CAT6 standard. This means that it has been tested and certified to support data transfer rates of up to 10 Gbps over distances of up to 55 meters. CAT6 patch cords are also backward compatible with lower category cables, such as CAT5 and CAT5e.The jumper connection cable, also known as a patch jumper or jumper cable, is a type of patch cord that is used to connect two patch panels or network switches together. Jumper cables are typically shorter than standard patch cords and are used to create a direct connection between two ports.The CAT6 patch jumper cable is a specialized type of patch cord that is designed to connect two CAT6 patch panels or switches together. It is used to create a direct connection between two network devices without the need for a patch panel or intermediate device.
