6A1 Category Jumper Connection Cable Wholesale

Home / Product / Connection Cable / Category Jumper Connection Cable / 6A1 Category Jumper Connection Cable

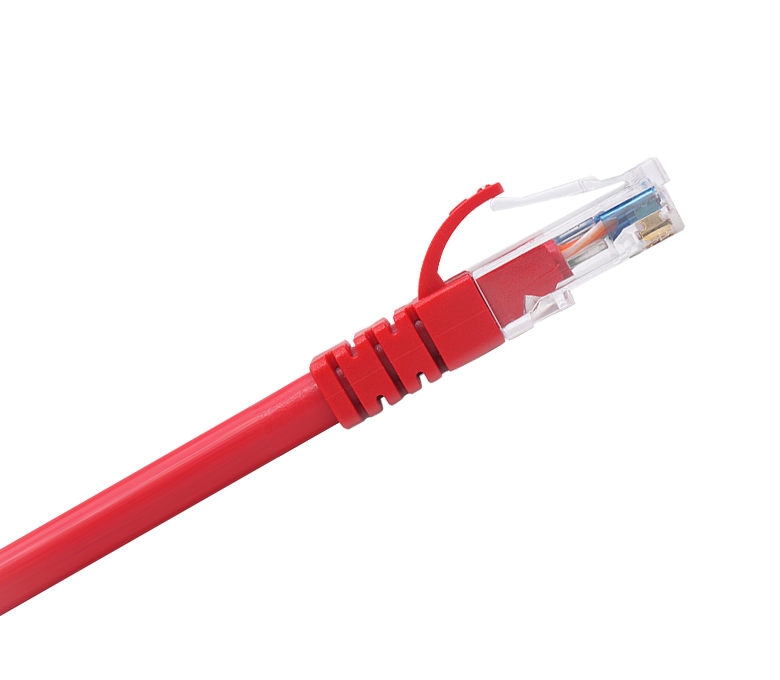

6A1 Category Jumper Connection Cable

  • Mukti-stand soft copper(oxugen-free copper,qurity 99.99%)stranded wire.
  •  Press the channel test(FLUKE).
  •  The 50µ gold-plated RJ45 plug,insert&draw frequency is ≥1000 times.
  •  Support bandwidth 500MHz,velocity 10Gbps.
  • Applicable environment:use&storage temperature:-20℃~70℃relative, humidity:10% to 90%.

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Physical performance

Jacket Material

PVC/LSZH

Insulation Materials

HDPE

Conduct Material

Multi stranded oxygen fre copper

Plug Material

PC

Plug Jacket

PVC

Reed Material

50µ gold-plated phospher bronze

Insert and Frequercy

≥1000 times

Bending Radius

≥2D Diameter

Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

lEAVE A MESSAGE

News

Product knowledge extension

The 6A1 Category Jumper Connection Cable is a type of Ethernet cable that is commonly used in data centers and other high-performance networking applications. It is designed to provide reliable and high-speed data transfer between networking devices, such as servers, switches, and routers.The 6A1 Category Jumper Connection Cable is a type of Category 6A cable, which means it is capable of transmitting data at speeds of up to 10 Gigabits per second (Gbps). This makes it ideal for use in high-speed networking environments where large amounts of data need to be transferred quickly and efficiently.The cable itself consists of four twisted pairs of copper wire, which are enclosed in a protective jacket. The wires are twisted in pairs to minimize interference from other electronic devices and to ensure that the data signal remains strong and stable over long distances.One of the key features of the 6A1 Category Jumper Connection Cable is its use of a special connector known as an RJ45 plug. This plug is specifically designed to fit into Ethernet ports on networking devices, and it provides a secure and reliable connection that is less prone to disconnection or signal loss than other types of connectors.The cable is also designed with a flexible and durable jacket that can withstand frequent bending and twisting without becoming damaged. This makes it ideal for use in tight spaces or areas where the cable may need to be routed around obstacles or through tight corners.
