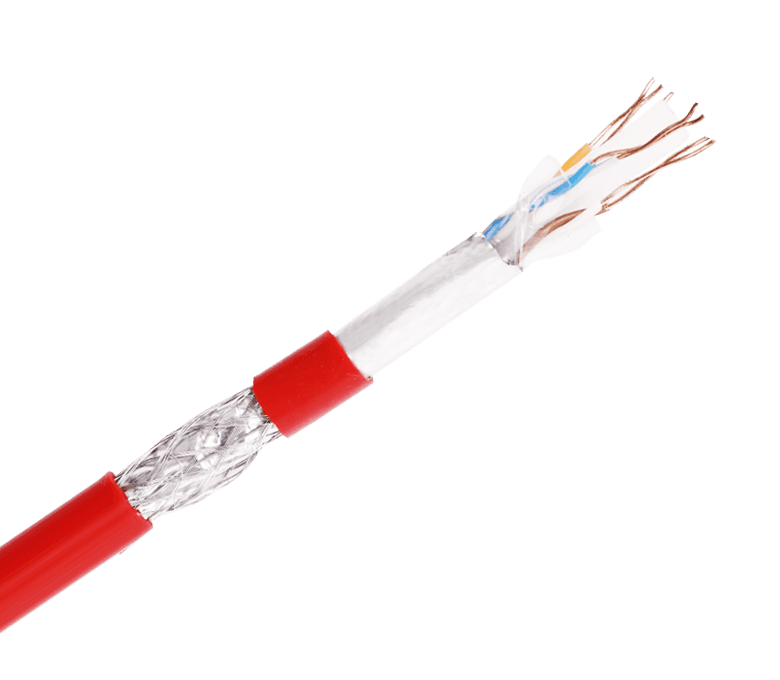

CAT6 S/FTP Lan Cable Category Cable

Lan Cable is a kind of media for transmitting digital information. This kind of cable is used in building integrated cabling system, residential integrated cabling system and enterprise information network cabling system. It is suitable for the front end of broadband and high-speed networks

Details & specifications

Construction
Technical Data Sheet
Documents to download

Item		Unit	Spec. Value
Conductor	Wire No.	---	4P
	Material	---	Solid Bare Copper
	Spec	AWG	23AWG
	Construction	No./mm	0.57±0.02
Insulation	Material	---	Skin-foam-skin
	Diameter	mm	1.35±0.05
	Color	---	1.Blue&White 2.Orange&White 3.Green&White 4.Brown&White
Foil Shield	Spec	mm	AL-Mylar 100％Coverage
Drain Wire	Material	---	Tinned copper
Drain Wire	Spec	mm	1/0.4±0.05
Braid Shield	Material	---	Al-Mg ＞40％Coverage
Jacket	Material	---	PVC
	Color	---	Assorted upon request
	Thickness	mm	0.55±0.1
	Diameter	mm	7.8±0.5

lEAVE A MESSAGE

News

Build a professional-grade audio transmission system

In the pursuit of high-quality audio experience, the connection between professional audio equipment is crucia...
2024-05-30
Pigtails: The key connector within a fiber optic terminal box

In the optical fiber communication network, pigtail, as a key accessory, plays a decisive role in the optical ...
2024-05-23
RG6+ power cord, monitoring line and distribution line: build an efficient and stable monitoring system

In the digital age, surveillance systems have become an indispensable security guarantee in various fields. To...
2024-05-16
CAT5e S/FTP Lan cable: the stable and high-speed choice for LAN construction

In the digital age, LAN has become an indispensable part of our daily life and work. In order to meet the need...
2024-05-09

Product knowledge extension

Constructed from high-quality materials, the CAT6 S/FTP Lan Cable Category Cable is built to last. Its sturdy PVC jacket and copper-clad aluminum conductor ensure that it can withstand everyday wear and tear, while its fully shielded design protects against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring a stable and secure connection.

This CAT6 S/FTP Lan Cable Category Cable is designed to meet and exceed the performance standards of the Category 6 standard. It is rated for transmission frequencies of up to 250 MHz, and it supports data transfer rates of up to 10 Gbps. This means that you can enjoy fast and reliable data transfer speeds, whether you are transferring large files, streaming video, or playing online games.

The CAT6 S/FTP Lan Cable Category Cable also features a snagless design, which makes it easy to install and reduces the risk of damage to the cable or the connectors during installation. The molded strain relief provides extra protection against damage from bending and twisting, ensuring that the cable remains reliable and durable for years to come.

One of the key advantages of the CAT6 S/FTP Lan Cable Category Cable is its ability to support Power over Ethernet (PoE) technology. This means that it can deliver power to devices such as IP cameras, VoIP phones, and wireless access points, without the need for a separate power source. This makes it ideal for use in a wide range of applications, from small home networks to large-scale commercial installations.

In addition to its high performance and durability, the CAT6 S/FTP Lan Cable Category Cable is also highly versatile. It is compatible with a wide range of devices, including routers, switches, modems, and other networking equipment. It is also backward compatible with previous versions of the Ethernet standard, which means that it can be used in older networks without any compatibility issues.

Conductor Elongation	≥10％
Insulation Tensile Strength	≥10Mpa
Insulation Elongation	≥200％
Jacket Tensile Strength	≥13.8Mpa
Jacket Elongation	≥100％

Impedance	100±15Ω（1-100MHz）
	100±22Ω（100-250MHz）
	100±25Ω（250-500MHz）
Conductor Resistance @20°C	Max.9.38Ω/100m
DC Resistance Unbalance	Max.5％
Insulation Resistance	Min. 5000 MΩ*Km
Delay Skew	Max.45ns/100m

Frequency（MHz）	ATT (≤dB)	NEXT (≥dB)	PSNEXT (≥dB)	ELFEXT (≥dB)	PS ELFEXT (≥dB)	RL (≥dB)	Spread out 100m cable and test it
1.00	2.1	74.3	72.3	67.8	64.8	20.0
4.00	3.8	65.3	63.3	55.8	52.8	23.0
8.00	5.3	60.8	58.8	49.7	46.7	24.5
10.00	5.9	59.3	57.3	47.8	44.8	25.0
16.00	7.5	56.2	54.2	43.7	40.7	25.0
20.00	8.4	54.8	52.8	41.8	38.8	25.0
25.00	9.4	53.3	51.3	39.8	36.8	24.3
31.25	10.5	51.9	49.9	37.9	34.9	23.6
62.50	15.0	47.4	45.4	31.9	28.9	21.5
100.00	19.1	44.3	42.3	27.8	24.8	20.1
200.00	27.6	39.8	37.8	21.8	18.8	18.0
250.00	31.1	38.3	36.3	19.8	16.8	17.3
300.00	34.3	37.1	35.1	18.3	15.3	16.8
400.00	40.1	35.3	33.3	15.8	12.8	15.9
500.00	45.3	33.8	31.8	13.8	10.8	15.2
