Trunk Series—75 Ohm Coaxial 565 Seamless Trunk Cable with Messenger, Jelly Wholesale

Home / Product / Coaxial Cable / 75 Ohm Trunk Coaxial Cable / 565 Seamless Trunk Coaxial Cable / Trunk Series—75 Ohm Coaxial 565 Seamless Trunk Cable with Messenger, Jelly

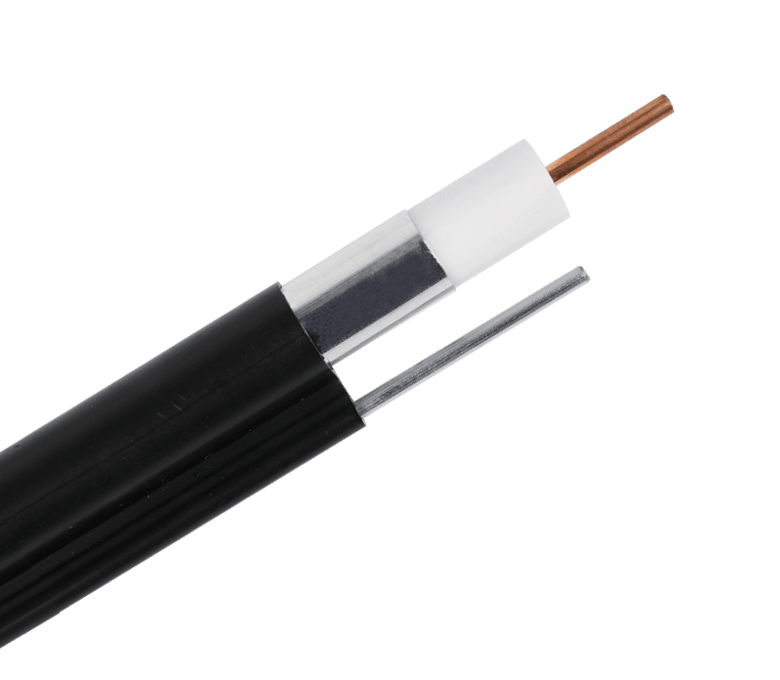

Trunk Series—75 Ohm Coaxial 565 Seamless Trunk Cable with Messenger, Jelly

Trunk cable series physically foaming insulation with AL-tube outer conductor is applied to CATV main line project. Tianyi AL-tube series made of CCA inner conductor and AL-tube outer conductor, both of the material have the same thermal expansion coefficient and modulus of elasticity. Which greatly decrease the failure caused by wire drawing and bending of inner conductor. Comparing with conventional cables, it has better shield attenuation, better return loss, less attenuation, etc.
Message form contact us
PREV: No previous article NEXT: Trunk Series—75 Ohm Coaxial Cable 565 Seamless Trunk Cable with Messenger

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download
Material Diameter (mm)
Inner Conductor Copper Clad Aluminum 3.28±0.03
Dielectric Foamed PE 13.18±0.10
Outer Conductor Extruded Aluminum Tube 14.35±0.10
Messenger Galvanized Steel 2.77±0.05
Jacket PE With Jelly    16.13±0.20
Packaging 1000m/Wooden reel D1050×d480×H700
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

News

Product knowledge extension

The term "seamless trunk cable" indicates that the cable doesn't have any splices or joints along its length, ensuring better signal quality and reducing the risk of signal loss or interference. The messenger wire or steel messenger is a supporting element that runs parallel to the cable, providing additional strength and stability, especially for aerial or overhead installations. As with any coaxial cable, a 75 Ohm impedance rating suggests that it is suitable for applications such as cable television (CATV), broadband distribution systems, and other telecommunications uses where 75 Ohm impedance is standard.
