Trunk Series—500 Welded Trunk Cable with Jelly 75 Ohm Coaxial Cable Wholesale

Home / Product / Coaxial Cable / 75 Ohm Trunk Coaxial Cable / 500 Seamless Trunk Coaxial Cable / Trunk Series—500 Welded Trunk Cable with Jelly 75 Ohm Coaxial Cable

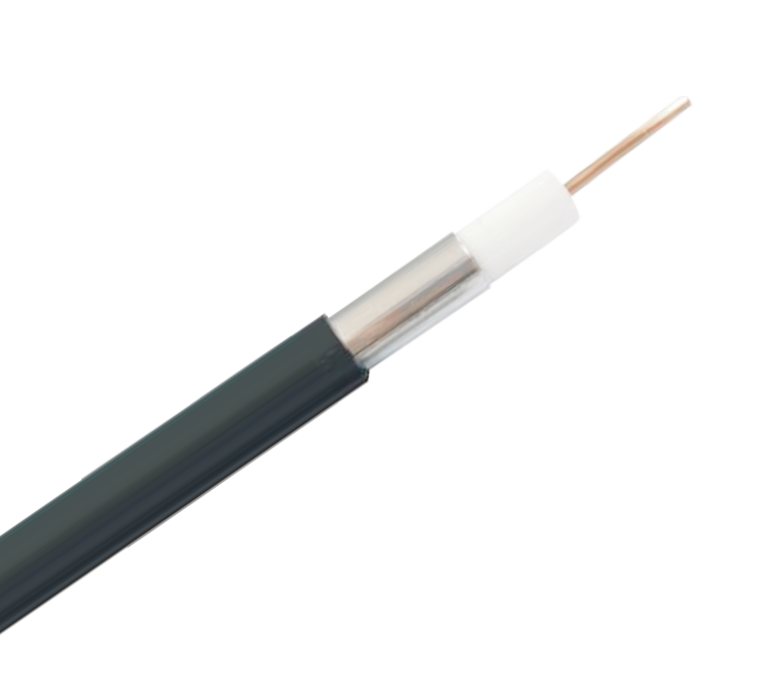

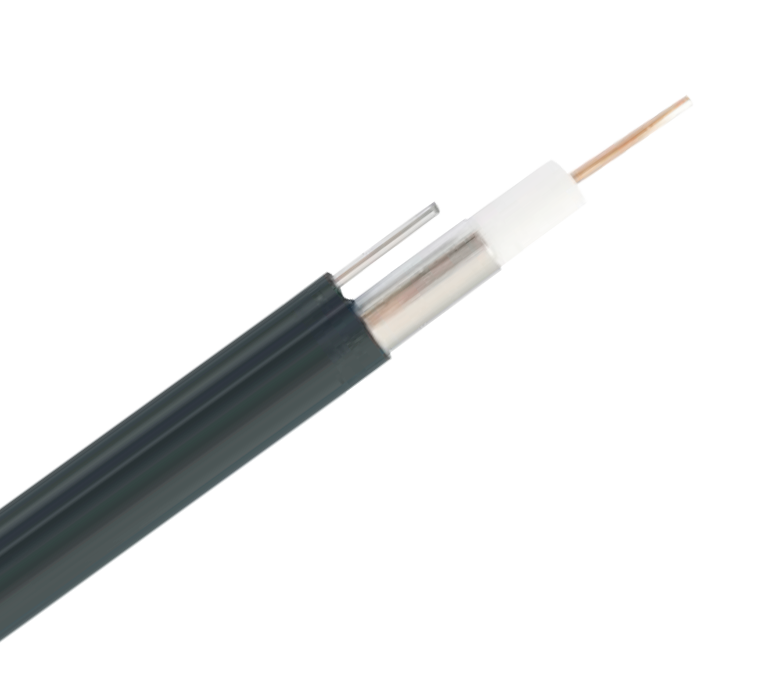

Trunk Series—500 Welded Trunk Cable with Jelly 75 Ohm Coaxial Cable

Trunk cable series physically foaming insulation with AL-tube outer conductor is applied to CATV main line project. Tianyi AL-tube series made of CCA inner conductor and AL-tube outer conductor, both of the material have the same thermal expansion coefficient and modulus of elasticity. Which greatly decrease the failure caused by wire drawing and bending of inner conductor. Comparing with conventional cables, it has better shield attenuation, better return loss, less attenuation, etc.
Message form contact us
PREV: Trunk Series—500 Welded Trunk Cable with Messenger 75 Ohm Coaxial Cable NEXT: Trunk Series—500 Seamless Trunk Cable 75 Ohm Coaxial Cable

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Material

Diameter (mm)

Inner Conductor

Copper Clad Aluminum

2.77±0.03

Dielectric

Foamed PE

11.48 nom.

Outer Conductor

Welded Aluminum Tube

12.75±0.10

Jacket

Black PE with Jelly

14.48±0.20

Packaging

1000m/Wooden reel

D950×d420×H520
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

News

Product knowledge extension

The Trunk Series 500 Jelly 75 Ohm Welded Trunk Coaxial Cable is a high-performance coaxial cable designed for use in telecommunications and broadcasting applications. With its advanced design and construction, this cable delivers reliable performance and exceptional signal quality, making it ideal for use in high-bandwidth applications such as digital video and high-speed data transmission. The cable features a durable outer jacket that protects against environmental factors such as moisture, temperature, and UV radiation, and a jelly-filled core that provides additional protection against moisture and other contaminants. Its welded construction ensures maximum strength and durability, while its 75 Ohm impedance ensures low signal loss and high-quality transmission. Overall, this cable is an excellent choice for any application requiring high-performance coaxial cabling.
