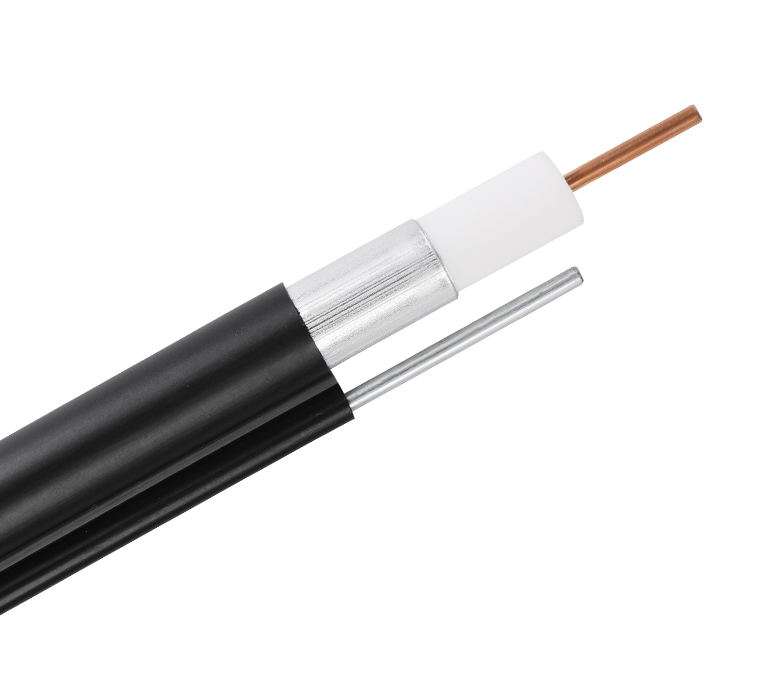

Trunk Series—500 Seamless Trunk Cable with Messenger, Jelly 75 Ohm Coaxial Cable

Trunk cable series physically foaming insulation with AL-tube outer conductor is applied to CATV main line project. Tianyi AL-tube series made of CCA inner conductor and AL-tube outer conductor, both of the material have the same thermal expansion coefficient and modulus of elasticity. Which greatly decrease the failure caused by wire drawing and bending of inner conductor. Comparing with conventional cables, it has better shield attenuation, better return loss, less attenuation, etc.
Message form contact us
PREV: Trunk Series—500 Seamless Trunk Cable with Messenger 75 Ohm Coaxial Cable NEXT: Trunk Series—500 Welded Trunk Cable with Messenger, Jelly 75 Ohm Coaxial Cable

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

Material

Diameter (mm)

Inner Conductor

Copper Clad Aluminum

2.77±0.03

Dielectric

Foamed PE

11.48±0.10

Outer Conductor

Seamless Aluminum Tube

12.75±0.10

Messenger

Galvanized Steel

2.77±0.05

Jacket

Black PE with Jelly

14.48±0.20

Packaging

1000m/Wooden reel

D1050×d420×H520
Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

Product knowledge extension

Trunk Series 75 Ohm Seamless Trunk Coaxial Cable is a high-performance cable designed for transmitting high-frequency signals with minimal signal loss. This cable features a seamless aluminum tube that provides excellent shielding against electromagnetic interference. It is ideal for use in CATV, satellite TV, and other video distribution applications. The Trunk Series cable is available in various sizes and configurations to meet different installation requirements. Its durable construction makes it suitable for indoor and outdoor installations, and it can be used in harsh environments. The Trunk Series cable is easy to install and maintain, and it provides reliable signal transmission over long distances.
