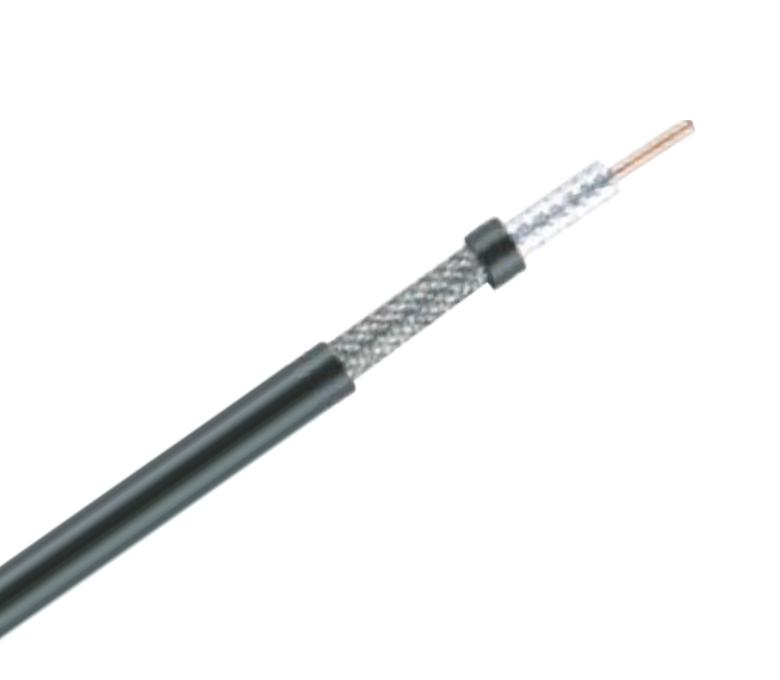

TY-195 50 Ohm Braiding Coaxial Cable

Coaxial Cable can be used for the transmission of both analog and digital signals. It is adopted to television broadcasting, long-distance telephone transmission, short-distance connections between computer systems, and local area networks. It has the advantages of good temperature performance, ultraviolet resistance, flame retarded, good shielding performance and long service life.
Message form contact us

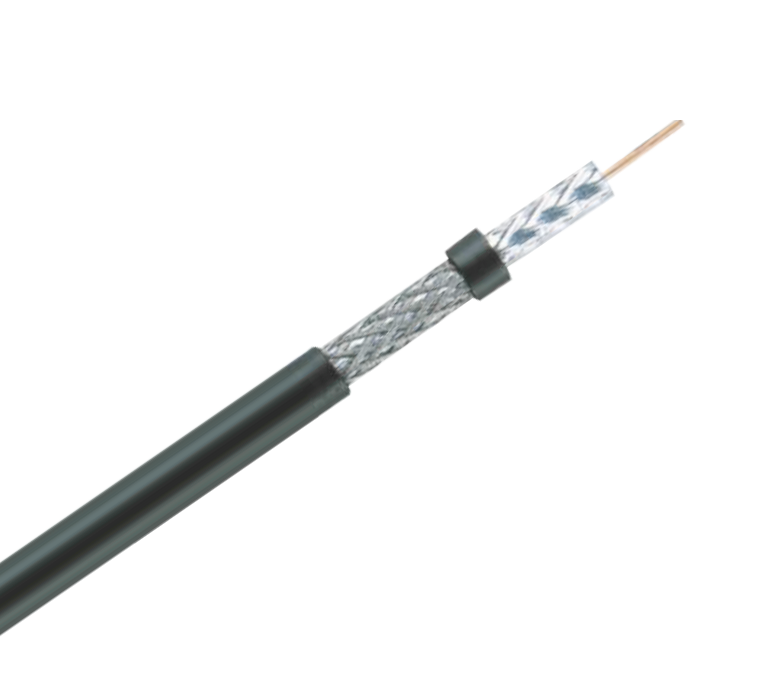

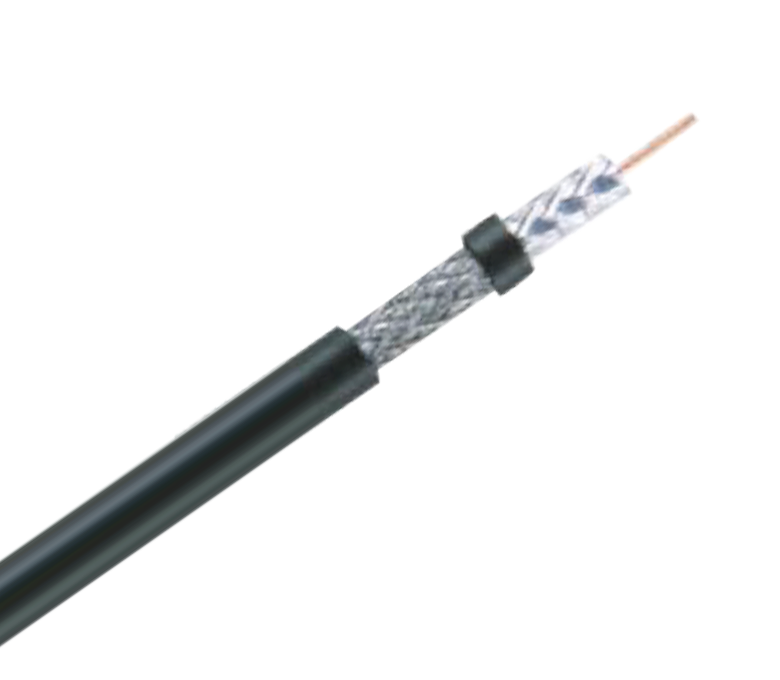

PREV: TY-200 50 Ohm Braiding Coaxial Cable NEXT: TY-100 50 Ohm Braiding Coaxial Cable

Details & specifications

  • Construction
  • Technical Data Sheet
  • Documents to download

TY-195

No.

Material

Dimensions(mm)

1.Inner Conductor

 Bare Copper

0.94±0.01

2.Dielectric

PE Foam PE

2.79±0.08

3.Outer Conductor

Al Foil + Tinned Copper Braiding

89% Coverage

4.Jacket

PE/LSZH/PVC

4.95±0.13



Zhejiang Wanma Tianyi Communication Wire & Cable Co., Ltd.

Certification

VIEW MORE

Color Printing Packaging Line, Imported New High-end Printing Equipment

Related Products

lEAVE A MESSAGE

News

Product knowledge extension

TY-195 50 Ohm Braiding Coaxial Cable is a high-performance cable designed for reliable signal transmission in high-frequency applications. Its braided construction provides excellent shielding against interference, while the 50 Ohm impedance ensures clear and stable signal transmission. This cable is built to last with a rugged construction that can withstand harsh environments and frequent use. It is ideal for use in telecommunications, broadcasting, or industrial applications where reliable connectivity and performance are critical.
The TY-195 is a flexible and lightweight cable that is easy to install and handle, making it a great choice for applications where space is limited. The cable features a low-loss dielectric material that helps to minimize signal attenuation, ensuring that signals are transmitted with minimal distortion. It has a wide operating frequency range and can handle high power levels, making it suitable for a wide range of applications.
